Rp11.000.000

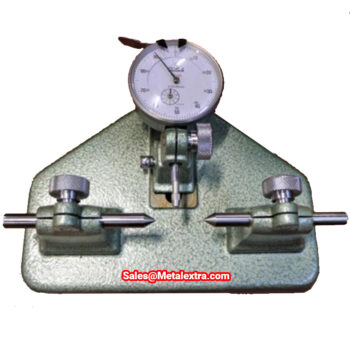

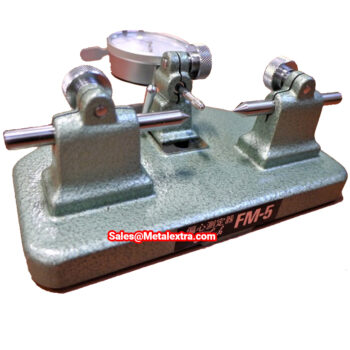

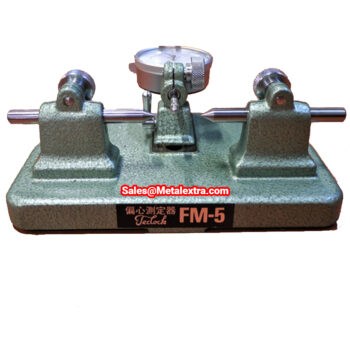

TECLOCK Micro Bench Center FM-5 merupakan pengembangan kombinasi micrometer dan Bench Center untuk pengukuran benda kerja dimensi kecil. Bench Center ini merupakan metode yang akurat dan cepat untuk memeriksa run out radial dari camshaft, crankshaft, dan poros silinder yang membutuhkan pengukuran dari itik sentuh ketiga. Frame terbuat dari material casting alloy steel dilapisi dengan enamel.
Bench center Jepang ini juga memiliki tailstock yang bisa disetel dikedua sisi kiri dan kanan. Dilengkapi dengan dial test indicator yang menggunakan lifter atau tuas pengangkat agar mempermudah proses interpolasi ukur. Anda dapat mengukur diameter luar dari berbagai bentuk komponen presisi dengan kisaran diameter hingga 60mm dengan lebar hingga 75mm. Anda dapat mengukur pitch roda gigi, ulir mikro, diameter luar, ketebalan, dan lainnya dengan tambahan probe lain seperti LVDT atau model lever indicator.
Sejak 1950, TOKYO ELECTRIC CLOCK Co.,Ltd merupakan produsen alat ukur dimensional presisi dan alat uji kekerasan asal Jepang. Agar keaslian produk terjamin, pastikan anda membeli solusi TECLOCK di Indonesia dari Metalextra.com.
Fitur TECLOCK Bench Center FM-5 (Standard Type):
Cocok untuk mengukur jumlah eksentrisitas (runout) dari berbagai poros presisi, benda kerja bulat, roda gigi presisi, pinion, dll.
Rentang pengukuran (mm): 10 dengan resolusi: 0,01
Dimensi kerja target (mm): Diameter hingga 60mm, lebar hingga 75mm
Perpindahan cepat spindel pengukur 12 mm / rotasi
Gaya pengukuran ±1.4 Newton untuk pengulangan akurasi yang tinggi
Tailstock disesuaikan dalam sumbu X dan di Z dengan mata jepit anvil tailstock kerucut dengan 60° V
Sekrup mikrometer akurat untuk penentuan posisi awal
Kompatibilitas dengan mata ukur anvil merek apapun yang memiliki Ø8mm, silahkan pilih test indicator disini.
Ada 2 model: probe dial indicator dengan resolusi 0.01mm (Standard) atau 0.001mm (High Precision)
Bingkai mekanis dalam casting alloy steel berat 2Kg.
Harap dicatat:
Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat. Harga bisa berubah sewaktu-waktu seiring dengan perubahan nilai tukar valuta asing dan program promosi. Untuk lebih jelas silahkan hubungi: Sales@Metalextra.com

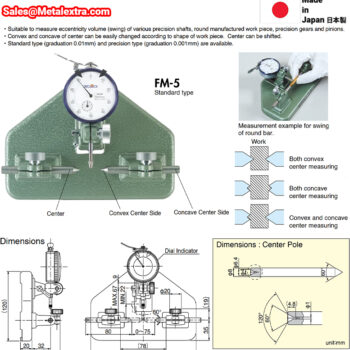

Dimensi TECLOCK Bench Center FM-5 (Standard Type) Accuracy: 15µm, Range diameter φ60, width: 75:
Order Guide TECLOCK Bench Center FM-5 (Standard Type) Accuracy: 15µm, Range diameter φ60, width: 75:
| Order code | Measuring range | Graduation | Indication range of dial indicator (mm) | Dial indicator Error | Measuring Force | Aplicable dimension | Weight | |
| Diameter | Width | |||||||
| FM-5 (Standard Type) | Diameter: up to Φ60mm Width: up to 75mm | 0.01 mm | 4 | ±0.015 mm | ±1.4 Newton | Ø60mm | Ø60mm | 2 Kg |
| FM-5 (High Precision Type) | Diameter: up to Φ60mm Width: up to 75mm | 0.001 mm | 5 | ±0.015 mm | ±1.4 Newton | Ø60mm | Ø60mm | 2 Kg |
1) Dial Gauge is sold separately
