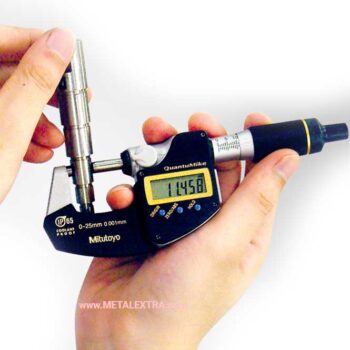

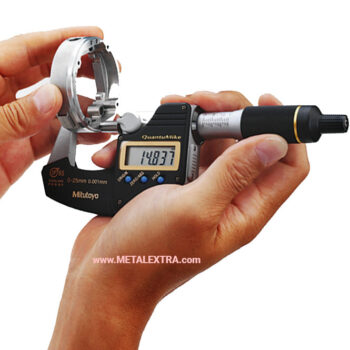

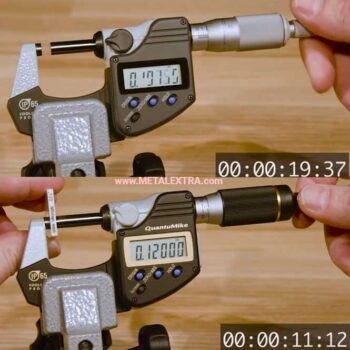

Mikrometer digital Mitutoyo ini memungkinkan pengukuran dilakukan beberapa kali lebih cepat dari mikrometer standar. Rangka dan desain yang sangat stabil dilengkapi coating pelindung panas untuk menjaga akurasi selama sesi pengukuran yang berulang-ulang. Mitutoyo 293-180-30 QuantuMike Coolant Proof Micrometer memiliki rentang pengukuran 0-1 “dan konversi Inch / Metric dan Output Data SPC. Seri ini memberikan pengukuran yang lebih cepat dengan 2mm per putaran, bukan standar 0,5mm.
Fitur mekanisme putar bidal ratchet dengan skala Nonius klasik membantu memastikan pengulangan akurasi ukur. Sistem elektronik dan layar LCD pada mikrometer ini juga sudah tingkat perlindungan IP65. Mata ukur anvil juga terbuat dari Carbide, mudah pengaturan awal, Nol / ABS, daya otomatis Nyala / Mati dan dikirim dengan kotak plastik HDPE.

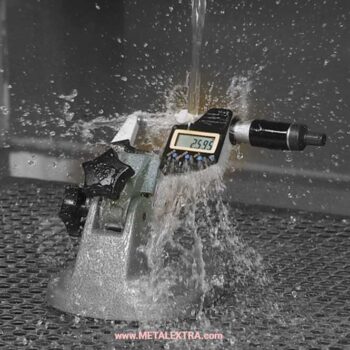

Mikrometer MItutoyo seri QuantuMike menawarkan pengukuran yang sangat baik dengan kecepatan, kualitas, dan stabilitas yang lebih tinggi daripada sebelumnya karena integrasi teknologi manufaktur dan pemrosesan yang canggih. Mekanisme ratchet dan ulir penguncinya menjamin akurasi pengukuran berulang. Output data digimatic via kabel data yang dijual terpisah. Mikrometer MITUTOYO ini terbuat dari bahan stainless steel terbaik sehingga awet. Sangat mudah digunakan dan cocok digenggam untuk siapa saja yang ingin melakukan pengukuran benda kerja yang memiliki tingkat presisi tinggi.
Mitutoyo atau dikenal juga dengan nama Mitsutoyo didirikan pada 22 Oktober 1934 oleh Alm. Pak Yehan Numata di Jepang. Mitutoyo berfokus pada produk pengukur dimensi mekanis, seperti mikrometer, kaliper, indikator dial, dan alat ukur lainnya. Sebagai produsen alat ukur dan alat uji asal Jepang, keaslian produk Mitutoyo hanya terjamin jika anda memperolehnya dari Metalextra.com.
Fitur Mitutoyo Digimatic QuantuMike Micrometer 0-25mm / 0-1″ 293-180 :
Harap dicatat: Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat.

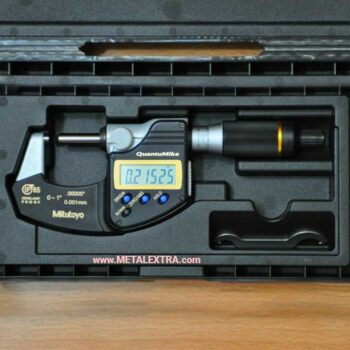

Ordering Guide MITUTOYO QuantuMike Micrometer ø25mm 293-180:
| Type | Standard |
|---|---|
| Range | 0-25mm / 0-1″ |
| Display Type | Digital |
| Resolution | 0.001mm / .00005″ |
| Accuracy | ±1 µm / ±.00005″ |
| Data Output | Yes |
| Measuring Units | Millimetre / Inch |
Alternative of MITUTOYO QuantuMike Micrometer ø25mm 293-180:
| Model | Product Type | Description | Indicator Type | Range | Resolution | Accuracy | SPC Output | Spindle Face |
| 422-330 | Blade Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Blade Micrometer, .75mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 422-331 | Blade Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm Digimatic Blade Micrometer, .75mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 422-332 | Blade Micrometer | 2-3″/50.8-76.2mm, .00005″/0.001mm Digimatic Blade Micrometer, .75mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 422-333 | Blade Micrometer | 3-4″/76.2-101.6mm, .00005″/0.001mm Digimatic Blade Micrometer, .75mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 3 – 4″/76.2 – 101.6mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 422-360 | Blade Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Blade Micrometer, .4mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 422-370 | Blade Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Blade Micrometer, .75mm Carbide Tipped Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 422-371 | Blade Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Blade Micrometer, .4mm Carbide Tipped Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 345-350-10 | Caliper Type Micrometer | .2-1.2″/5-30mm, .00005″/0.001mm Digimatic Caliper Jaw Type Micrometer, Carbide Steel Tip, Locking Clamp, With SPC Data Output, Ratchet Stop | Digimatic | .2 – 1.2″/5-30mm | .00005″/0.001mm | ±.00025″ | Yes | – |
| 345-351-10 | Caliper Type Micrometer | 1-2″/25-50mm, .00005″/0.001mm Digimatic Caliper Jaw Type Micrometer, Carbide Steel Tip, Locking Clamp, With SPC Data Output, Ratchet Stop | Digimatic | 1 – 2″/25-50mm | .00005″/0.001mm | ±.0003″ | Yes | – |
| 342-371 | Crimp Height Micrometer | 0-.8″/0-20mm, .00005″/0.001mm Digimatic Crimp Height Micrometer, 60 Degree Point, With SPC Data Output, Ratchet Stop | Digimatic | 0 – .8″/0 – 20mm | .00005″/0.001mm | ±.00015″ | Yes | Point |
| 389-351 | Deep Throat Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Sheet Metal Micrometer, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
| 389-352 | Deep Throat Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Sheet Metal Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
| 329-350-10 | Depth Micrometer | 0-6″/0-152.4, .00005″/0.001mm Digimatic Depth Micrometer, 6 interchangeable rods (1″/25.4mm increments), Rod Clamp, 4″ Base, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 6″/0 – 152.4mm | .00005″/0.001mm | ±.00012″/±3µm | Yes | – |
| 329-351-10 | Depth Micrometer | 0-12″/0-304.8, .00005″/0.001mm Digimatic Depth Micrometer, 12 interchangeable rods (1″/25.4mm increments), Rod Clamp, 4″ Base, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 12″/0 – 304.8mm | .00005″/0.001mm | ±.00012″/±3µm | Yes | – |
| 164-164 | Digimatic Micrometer Head | 2″/50.8mm, .0005″/0.01mm, Digimatic Micrometer Head, With SPC Data Output, 330 Degree Rotating Face | Digital | 0 – 2″/0 – 50.8mm | .00005″/0.001mm | ±.00015″ | Yes | – |
| 323-350 | Disk Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Disk Micrometer, .787″/20mm Diameter .028″/0.7mm Edge Thickness Disk, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0002″ | Yes | Disk |
| 323-351 | Disk Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Disk Micrometer, .787″/20mm Diameter .028″/0.7mm Edge Thickness Disk, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.0002″ | Yes | Disk |
| 323-352 | Disk Micrometer | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 Digimatic Disk Micrometer, .787″/20mm Diameter .028″/0.7mm Edge Thickness Disk, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 2 – 3″/50 – 76.2mm | .00005″/0.001mm | ±.0003″ | Yes | Disk |
| 369-350 | Disk Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Disk Micrometer, .787″/20mm Diameter .028″/0.7mm Edge Thickness Disk, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0002″ | Yes | Disk |
| 293-100 | MDH Micrometer | 0-25mm, 0.0001mm/0.0005mm switchable MDH Digimatic Outside Micrometer, With Output | Digimatic | 0 – 25mm | 0.0001mm | ±0.5μm | Yes | Flat |
| 293-130 | MDH Micrometer | 0-1″/0-25.4mm, .00005″/.00002″/0.0001mm/0.0005mm switchable, MDH Digimatic Outside Micrometer, With Output | Digimatic | 0 – 1″/0 – 25.4mm | .000005 In | ±.00002″ | Yes | Flat |
| 293-230-30 | Micrometer | 0-25mm, 0.001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 25mm | 0.001mm | ±1µm | Yes | Flat |
| 293-231-30 | Micrometer | 25-50mm, .001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 25 – 50mm | 0.001mm | ±1µm | Yes | Flat |
| 293-232-30 | Micrometer | 50-75mm, .001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 50 – 75mm | 0.001mm | ±2µm | Yes | Flat |
| 293-233-30 | Micrometer | 75-100mm, .001mm, IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 75 – 100mm | 0.001mm | ±2µm | Yes | Flat |
| 293-240-30 | Micrometer | 0-25mm, 0.001mm, IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop | Digimatic | 0 – 25mm | 0.001mm | ±1µm | No | Flat |
| 293-241-30 | Micrometer | 25-50mm, .001mm, IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop, With Standard | Digimatic | 25 – 50mm | 0.001mm | ±1µm | No | Flat |
| 293-330-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-331-30 | Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-332-30 | Micrometer | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-333-30 | Micrometer | 3-4″/76.2-101.6mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 3 – 4″/76.2 – 101.6mm | .00005″/0.001mm | ±.0001″ | Yes | Flat |
| 293-334-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-335-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Friction Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-336-30 | Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Friction, With Standard | Digimatic | 1 – 2″/25.4mm – 50.8mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-340-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-341-30 | Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop, With Standard | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-342-30 | Micrometer | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop, With Standard | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-343-30 | Micrometer | 3-4″/76.2-101.6mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Stop, With Standard | Digimatic | 3 – 4″/76.2 – 101.6mm | .00005″/0.001mm | ±.0001″ | No | Flat |
| 293-344-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-345-30 | Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Thimble, With Standard | Digimatic | 1 – 2″/25.4mm – 50.8mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-346-30 | Micrometer | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Thimble, With Standard | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-347-30 | Micrometer | 3-4″/76.2-101.6mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Thimble, With Standard | Digimatic | 3 – 4″/76.2 – 101.6mm | .00005″/0.001mm | ±.0001″ | No | Flat |
| 293-348-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Friction Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-349-30 | Micrometer | 0-1″/0-25.4mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, No Output, Ratchet Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .0001″/0.001mm | ±.0001″ | No | Flat |
| 293-350-10 | Micrometer | 4-5″/101.6-127mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 4 – 5″/101.6 – 127mm | .0001″/0.001mm | ±.0001″ | Yes | Flat |
| 293-351-10 | Micrometer | 5-6″/127-152.4mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 5 – 6″/127 – 152.4mm | .0001″/0.001mm | ±.0001″ | Yes | Flat |
| 293-352-10 | Micrometer | 6-7″/152.4-177.8mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 6 – 7″/152.4 – 177.8mm | .0001″/0.001mm | ±.00015″ | Yes | Flat |
| 293-353-10 | Micrometer | 7-8″/177.8-203.2mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 7 – 8″/177.8 – 203.2mm | .0001″/0.001mm | ±.00015″ | Yes | Flat |
| 293-354-10 | Micrometer | 8-9″/203.2-228.6mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 8 – 9″/203.2 – 228.6mm | .0001″/0.001mm | ±.00015″ | Yes | Flat |
| 293-355-10 | Micrometer | 9-10″/228.6-254mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 9 – 10″/228.6 – 254mm | .0001″/0.001mm | ±.00015″ | Yes | Flat |
| 293-356-10 | Micrometer | 10-11″/254-279.4mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 10 – 11″/254 – 279.4mm | .0001″/0.001mm | ±.00015″ | Yes | Flat |
| 293-357-10 | Micrometer | 11-12″/279.4-304.8mm, .0001″/0.001mm IP65 Digimatic Outside Micrometer, With SPC Data Output, Ratchet Stop, With Standard | Digimatic | 11 – 12″/279.4 – 304.8mm | .0001″/0.001mm | ±.00015″ | Yes | Flat |
| 293-676 | Micrometer | 0-1.2″/0-30.48mm, .00005″/0.001mm IP54 Quickmike Digimatic Outside Micrometer, With SPC Data Output, Non-rotating Spindle, Ratchet Friction Thimble | Digimatic | 0 – 1.2″/0 – 30.48mm | .0005″/0.001mm | ±.0001″ | Yes | Flat |
| 293-677 | Micrometer | 1-2.2″/25.4-55.88mm, .00005″/0.001mm IP54 Quickmike Digimatic Outside Micrometer, With SPC Data Output, Non-rotating Spindle, Ratchet Friction Thimble, With Standard | Digimatic | 1 – 2.2″/25.4 – 55.88mm | .0005″/0.001mm | ±.0001″ | Yes | Flat |
| 293-831-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Lite Outside Micrometer, No Spindle Clamp, No Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | No | Flat |
| 293-832-30 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Lite Outside Micrometer, No Spindle Clamp, No Output, Friction Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | No | Flat |
| 293-960-30 | Micrometer | 0-3″/0-76.2mm, .00005″/0.001mm, IP65 Digimatic Outside Micrometer Set, 3 Micrometers, 2 Standard Bars, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 3″/0 – 76.2mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-961-30 | Micrometer | 0-4″/0-101.6mm, .00005″/0.001mm, IP65 Digimatic Outside Micrometer Set, 4 Micrometers, 3 Standard Bars, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 4″/0 – 101.6mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 340-351-10 | Micrometer | 0-6″/0-152.4mm, .00005″/0.001mm IP65 DigimaticInterchangeable Anvil Micrometer, With 6 Anvils and 5 Standards, With SPC Data Output, Ratchet Stop | Mechanical | 0 – 6″/0 – 152.4mm | .00005″/0.001mm | ±.00016″ + .00004″ | Yes | Flat |
| 340-352-10 | Micrometer | 6-12″/152.4-304.8mm, .00005″/0.001mm IP65 DigimaticInterchangeable Anvil Micrometer, With 6 Anvils and 6 Standards, With SPC Data Output, Ratchet Stop | Mechanical | 6 – 12″/152.4 – 304.8mm | .00005″/0.001mm | ±.00016″ + .00004″ | Yes | Flat |
| 340-721 | Micrometer | 18-24″/457.2-609.6mm, .00005″/0.001mm IP65 DigimaticInterchangeable Anvil Micrometer, With 6 Anvils and 6 Standards, With SPC Data Output, Ratchet Stop | Digimatic | 18 – 24″/457.2 – 609.6mm | .0001″/0.001mm | – | Yes | – |
| 395-351 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Spherical Face Micrometer, Carbide Steel Tip, Spherical Anvil Flat Spindle, .59″ Max Inside Diameter, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | Yes | Flat |
| 395-363 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Spherical Face Micrometer, Carbide Steel Tip, 4.7mm Diameter Spherical Anvil, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 395-364 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Spherical Face Micrometer, Carbide Steel Tip, 8mm Diameter Cylindrical Anvil, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 395-371 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Spherical Face Micrometer, Carbide Steel Tip, Spherical Anvil Spherical Spindle, .59″ Max Inside Diameter, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | Yes | Spherical |
| 406-350 | Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Outside Micrometer, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 406-351 | Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm Digimatic Outside Micrometer, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.00015″ | Yes | Flat |
| 350-351-10 | Micrometer Head | 0-1″/0-25.4mm, .00005″/0.001mm, Digimatic Micrometer Head, .375″ Diameter Plain Stem, Flat Carbide Tipped Spindle Face, With SPC Data Output, Ratchet Stop | Digital | 0 – 1 In | .0005″/0.001mm | ±.0001″ | Yes | Flat |
| 350-352-10 | Micrometer Head | 0-1″/0-25.4mm, .00005″/0.001mm, Digimatic Micrometer Head, .375″ Diameter Stem with Clamp Nut, Flat Carbide Tipped Spindle Face, With SPC Data Output, Ratchet Stop | Digital | 0 – 1 In | .00005″/0.001mm | ±.0001″/±2µm | Yes | Flat |
| 350-354-10 | Micrometer Head | 0-1″/0-25.4mm, .00005″/0.001mm, Digimatic Micrometer Head, .375″ Diameter Stem with Clamp Nut, Spherical (SR4) Spindle Face, With SPC Data Output, Ratchet Stop | Digital | 0 – 1″/0 -25.4mm | .00005″/0.001mm | ±.0001″/±2µm | Yes | Flat |
| 350-357-10 | Micrometer Head | 0-1″/0-25.4mm, .00005″/0.001mm, IP65 Digimatic Micrometer Head, .375″ Diameter Plain Stem, Spherical (SR4) Spindle Face, With SPC Data Output | Digital | 0 – 1″/0 -25.4mm | .00005″/0.001mm | ±.0001″/±2µm | Yes | Flat |
| 350-382-10 | Micrometer Head | 0-1″/0-25.4mm, .00005″/0.001mm, IP65 Digimatic Micrometer Head, .5″ Diameter Plain Stem, Flat Carbide Tipped Spindle Face, With SPC Data Output, Ratchet Stop | Digital | 0 – 1″/0 -25.4mm | .00005″/0.001mm | ±.0001″/±2µm | Yes | Flat |
| 342-351 | Point Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Point Micrometer, 15 Degree Point, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | Yes | Point |
| 342-361 | Point Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Point Micrometer, 30 Degree Point, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | Yes | Point |
| 293-180 | QuantuMike | 0-1″/0-25.4mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-181 | QuantuMike | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble | Digimatic | 1 – 2″/25.4mm – 50.8mm | .00005″/0.001mm | ±.00005″ | Yes | Flat |
| 293-182 | QuantuMike | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble, With Standard | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.0001″ | Yes | Flat |
| 293-183 | QuantuMike | 3-4″/76.2-101.6mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, With SPC Data Output, Ratchet Thimble, With Standard | Digimatic | 3 – 4″/76.2 – 101.6mm | .00005″/0.001mm | ±.0001″ | Yes | Flat |
| 293-185 | QuantuMike | 0-1″/0-25.4mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, No Output, Ratchet Thimble | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-186 | QuantuMike | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, No Output, Ratchet Thimble, With Standard | Digimatic | 1 – 2″/25.4mm – 50.8mm | .00005″/0.001mm | ±.00005″ | No | Flat |
| 293-187 | QuantuMike | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, No Output, Ratchet Thimble, With Standard | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.0001″ | No | Flat |
| 293-188 | QuantuMike | 3-4″/76.2-101.6mm, .00005″/0.001mm IP65 QuantuMike Digimatic Outside Micrometer, No Output, Ratchet Thimble, With Standard | Digimatic | 3 – 4″/76.2 – 101.6mm | .00005″/0.001mm | ±.0001″ | No | Flat |
| 326-351-10 | Screw Thread Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Digimatic Screw Thread Micrometer, With SPC Data Output, Ratchet Stop, Optional Anvils Available | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
| 326-352-10 | Screw Thread Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Digimatic Screw Thread Micrometer, With SPC Data Output, Ratchet Stop, With Standard, Optional Anvils Available | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
| 326-353-10 | Screw Thread Micrometer | 2-3″/50.8-76.2mm, .00005″/0.001mm IP65 Digimatic Screw Thread Micrometer, With SPC Data Output, Ratchet Stop, With Standard, Optional Anvils Available | Digimatic | 2 – 3″/50.8 – 76.2mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
| 331-351 | Spline Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Spline Micrometer, 3mm Diameter Spline, Carbide Steel Tip, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | Yes | Flat |
| 331-361 | Spline Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm Digimatic Spline Micrometer, 2mm Diameter Spline, Carbide Steel Tip, With SPC Data Output, Ratchet Stop | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0001″ | Yes | Flat |
| 317-351 | Uni-Micrometer | 0-1″/0-25.4mm, .00005″/0.001mm IP65 Uni-Mike Digimatic Interchangeable Anvil Micrometer, With SPC Data Output, Friction Thimble, Flat and Rod Anvils Included | Digimatic | 0 – 1″/0 – 25.4mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
| 317-352 | Uni-Micrometer | 1-2″/25.4-50.8mm, .00005″/0.001mm IP65 Uni-Mike Digimatic Interchangeable Anvil Micrometer, With SPC Data Output, Friction Thimble, Flat and Rod Anvils Included, With Standard | Digimatic | 1 – 2″/25.4 – 50.8mm | .00005″/0.001mm | ±.0002″ | Yes | Flat |
