Rp1.335.400

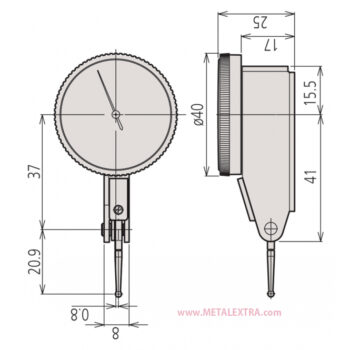

Lever Indikator atau test indikator tuas merupakan tipe anti-magnetik serbaguna buatan Mitutoyo (atau indikator uji dengan tampilan dial jarum atau Dial Test Indicator) cocok untuk operasi penyelarasan pada peralatan mesin bubut, milling dan aplikasi serupa. Indikator ini secara otomatis beradaptasi dengan arah pengukuran yang diperlukan pada dudukannya, Mata anvil pengukur akan mengikuti gerakan dan gesekan dengan gaya friksi terendah untuk operasi yang halus dan tepat. Anda bisa melakukan pengukuran lebih lanjut dengan beragam aksesories seperti feeler, agar diameter dalam dan jari-jari kelengkungan dapat dengan mudah diukur.
DIALTEST INDICATOR 513-401E merupakan alat ukur untuk mengetes toleransi kerataan bidang datar, kerataan permukaan dan mnguji kebulatan poros, atau kerataan permukaan dinding silinder. Alat ini menggunakan alat bantu magnetic base untuk memegang dial gauge yang berfungsi mengatur posisi ketinggian dial gauge pada tempat atau permukaan benda yang diukur. Dial indicator mitutoyo ini mempunyai besar pengukuran sebesar 0-0.14mm. Sisi poros probe indikator memiliki gardan gigi dan screw presisi yang ketika probe bergerak, gear rack menggerakkan pinion gear untuk memutar sensor indikator dan menampilkan ukuran di tampilan dial jarum. Bekerja secara andal dalam aplikasi yang terus-menerus di bengkel maupun digunakan dengan jig dan alat ukur lainnya.
Fitur MITUTOYO Dial Lever Indicator 0.8mm 513-404E:
| Type | Lever |
|---|---|
| Range | 0.8mm |
| Display Type | Non-digital |
| Graduations | 0.01mm |
| Accuracy | ±8 µm |
| Data Output | No |
| Dial Reading | 0-40-0 |
| Measuring Force | 0.3N or less |
| Measuring Units | Millimetre |
| Order No | Model | Range | Accuracy | Contact Point | Measuring Force | Resolution *Switchable | Type | Remarks |
| 543-391 | ID-C112MX | .5in/ 12.7mm | .0001in | Stem Ø 8mm M2.5×0.45 Thread |
Less than 1.5N |
*.00005in 0.001mm | ISO/JIS | – |
| 543-391B | ID-C112MX | .5in/ 12.7mm | .0001in | Stem Ø 8mm M2.5×0.45 Thread |
Less than 1.5N |
*.00005in 0.001mm | ISO/JIS | – |
| 543-392 | ID-C112EXB | .5in/ 12.7mm | .0001in | Stem dia3/8″,#4-48 UNF Thread | Less than 1.5N |
*.00005in 0.001mm | ISO/JIS | – |
| 543-392B | ID-C112EXB | .5in/ 12.7mm | .0001in | Stem dia3/8″,#4-48 UNF Thread | Less than 1.5N |
.00005in 0.001mm | ISO/JIS | – |
| 543-395 | ID-C112CMX | .5in/ 12.7mm | .0001in | Stem ø8mm M2.5×0.45 Thread | Less than 0.4-0.7N |
*.00005in 0.001mm | ISO/JIS | Low measuring force |
| 543-395B | ID-C112CMX | .5in/ 12.7mm | .0001in | Stem ø8mm M2.5×0.45 Thread | Less than 0.4-0.7N |
.00005in 0.001mm | ISO/JIS | Low measuring force |
| 543-396 | ID-C112CEX | .5in/ 12.7mm | .0001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 0.4, 0.6, 0.7N |
*.00005in 0.001mm | ANSI/AGD | Low measuring force |
| 543-396B | ID-C112CEX | .5in/ 12.7mm | .0001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 0.4, 0.6, 0.7N |
*.00005in 0.001mm | ANSI/AGD | Low measuring force |
| 543-401 | ID-C1012MX | .5in/ 12.7mm | .001in | Stem Ø 8mm M2.5×0.45 Thread |
Less than 0.9N |
.0005in 0.01mm | ISO/JIS | – |
| 543-401B | ID-C1012MX | .5in/ 12.7mm | .001in | Stem Ø 8mm M2.5×0.45 Thread |
Less than 0.9N |
.0005in 0.01mm | ISO/JIS | – |
| 543-402 | ID-C1012EX | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 0.9N |
.0005in 0.01mm | ANSI/AGD | – |
| 543-402B | ID-C1012EX | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 0.9N |
.0005in 0.01mm | ANSI/AGD | – |
| 543-405 | ID-C1012CMX | .5in/ 12.7mm | .001in | Stem ø8mm M2.5×0.45 Thread | Less than 0.2-0.5N |
.0005in 0.01mm | ISO/JIS | Low measuring force |
| 543-405B | ID-C1012CMX | .5in/ 12.7mm | .001in | Stem ø8mm M2.5×0.45 Thread | Less than 0.2-0.5N |
.0005in 0.01mm | ISO/JIS | Low measuring force |
| 543-406 | ID-C1012CEX | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 0.2, 0.3, 0.4, 0.5N |
.0005in 0.01mm | ANSI/AGD | Low measuring force |
| 543-406B | ID-C1012CEX | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 0.2, 0.3, 0.4, 0.5N |
.0005in 0.01mm | ANSI/AGD | Low measuring force |
| 543-471B | ID-C125MXB | 1in/ 25.4mm | 0.00012in | Stem ø8mm M2.5×0.45 Thread | Less than 1.8N |
*.00005in 0.001mm | ISO/JIS | – |
| 543-472B | ID-C125EXB | 1in/ 25mm | .0001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 1.8N |
*.00005in 0.001mm | ANSI/AGD | – |
| 543-475B | ID-C1025MXB | 1in/ 25.4mm | .001in | Stem ø8mm M2.5×0.45 Thread | Less than 1.8N |
.0005in 0.01mm | ISO/JIS | – |
| 543-476B | ID-C1025EXB | 1in/ 25mm | .001in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 1.8N |
.0005in 0.01mm | ANSI/AGD | – |
| 543-491B | ID-C150MXB | 2in/ 50.8mm | 0.00025in | Stem ø8mm M2.5×0.45 Thread | Less than 2.3N |
*.00005in 0.001mm | ISO/JIS | – |
| 543-492B | ID-C150EXB | 2in/ 50mm | .0002in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 2.3N |
*.00005in 0.001mm | ANSI/AGD | – |
| 543-495B | ID-C1050MXB | 2in/ 50.8mm | .0016in | Stem ø8mm M2.5×0.45 Thread | Less than 2.3N |
.0005in 0.01mm | ISO/JIS | – |
| 543-496B | ID-C112CEXB | 2in/ 50mm | .0016in | Stem dia 3 8 in 4-48 UNF Thread |
Less than 2.3N |
.0005in 0.01mm | ANSI/AGD | – |
Test Plunger indicator
INSIZE Dial Test Indicator 2888 Large Face (Resolution 0.01mm) Accuracy 17μm, Range: 10mm
