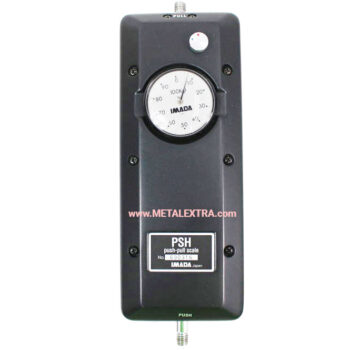

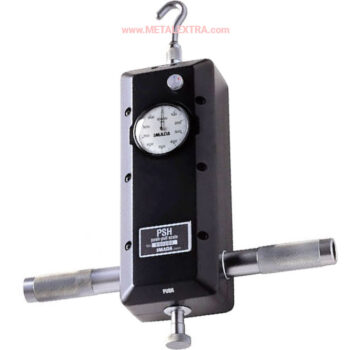

IMADA Push Pull Force Gauge PSH Series merupakan solusi inovatif dalam mengukur gaya tekan atau compression test maupun gaya tarik atau stretch test dalam pengujian Tension measurement. Compression measurement. Abrasion measurement. Anda bisa menggunakan beragam aksesoris maupun jig yang sesuai dengan model pengujian yang diinginkan. konstruksi pengukur gaya mekanis IMADA Push Pull Force Gauge PSH Series tahan terhadap lingkungan industri dan mempertahankan akurasi untuk periode yang lama. Desain ergonomis membuatnya ideal untuk digunakan dengan tangan, atau dapat dipasang ke tempat uji. Pengukur gaya IMADA Force Gauge PSH 500N to 3000N berguna untuk pengukuran gaya beban tinggi dengan akurasi +/- 0,1% F.S. atau kurang. Kapasitas yang tersedia mulai dari 1000N (100kgf) hingga 3000N (300kgf).

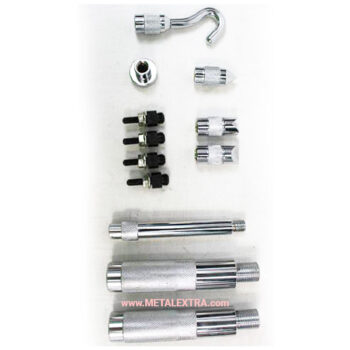

IMADA Push Pull Force Gauge PSH Series cocok digunakan dengan beragam model Stand vertikal, horizontal maupun ketika mengukur kualitas pegas, efektivitas kait pintu, pengujian kawat, kompresi dan area lain yang memerlukan pengukuran gaya yang konstan dan presisi. Pengukur gaya mekanis IMADA Force Gauge tipe PS dijual sebagai kit, lengkap dengan pengukur, tas plastik keras, tujuh attachment pengukur (kepala datar, kerucut, pahat, berlekuk, kait kecil, kait besar, dan kait-Y), dan batang ekstensi. Resolusi PS 2 kali lebih halus daripada pengukur gaya mekanis FB.
Sejak 1947, IMADA Co Ltd. memproduksi solusi presisi asal kota Toyohashi, Aichi Jepang. Pastikan kehandalan dan keaslian produk Force Gauge IMADA dengan membelinya di Metalextra.com.
Fitur IMADA Push Pull Force Gauge PSH 500N to 3000N:
Mempertahankan tingkat akurasi yang tinggi untuk periode yang lama dengan konstruksi logam tugas berat dan ergonomis
Lebih presisi dengan akurasi tinggi +/- 0,1% F.S atau kurang.
Tersedia dalam kapasitas mulai 500N(50kgf) hingga 3000N (300kgf)
Tidak perlu baterai sehingga aman secara intrinsik di lingkungan berbahaya

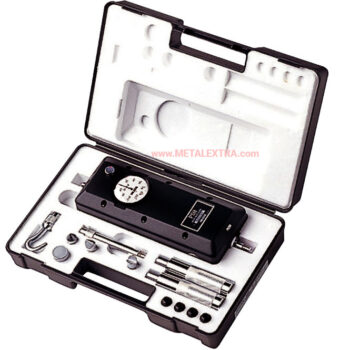

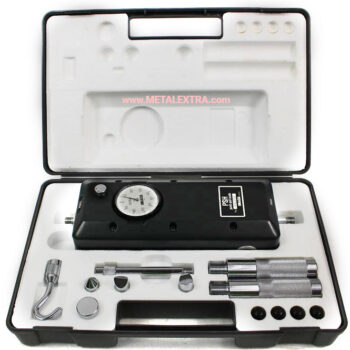

6 aksesori tambahan disertakan, Set lengkap aksesori dan tas jinjing sudah termasuk.
Mode waktu nyata dan puncak
Tes cepat dimungkinkan untuk test tekan dan test tarik manual.
Harap dicatat: Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat.
Order Guide IMADA Force Gauge PSH 500N to 3000N:
|
Model |
PSH series |
|
Accuracy |
+/-0.1% F.S. |
|
Stroke |
10mm |
|
Unit of measurement |
Please refer to the table below |
|
Reading method |
Real-time track or Peak-hold |
|
Divisions |
100lines* |
|
Operating temperature |
0 to +40 degree Celcius |
|
Weight |
Approx. 3.1kg (Vary according to models) |
|
Accessory |
6 kinds of attachemets, handles (2 pcs), gauge mounting plate bolts (4 pcs), carrying case |
* 3000N, 300K, 300lb : 120 divisions
Model table of PSH series High Capacity Model Mechanical Force Gauge
|
Model |
Capacity |
1 division |
Thread |
|
PSH-500N |
500N |
5N |
M10 |
|
PSH-1000N |
1000N |
10N |
|
|
PSH-2000N |
2000N |
20N |
|
|
PSH-3000N |
3000N |
25N |
|
|
Model(NOT available in Japan) |
Capacity |
1 division |
Thread |
|
PSH-50K |
50kgf |
0.5kgf |
M10 |
|
PSH-100K |
100kgf |
1kgf |
|
|
PSH-200K |
200kgf |
2kgf |
|
|
PSH-300K |
300kgf |
2.5kgf |
|
|
Model(NOT available in Japan) |
Capacity |
1 division |
Thread |
|
PSH-200lb |
200lb |
2lb |
M10 |
|
PSH-300lb |
300lb |
2.5lb |
|
|
PSH-500lb |
500lb |
5lb |
*In Japan, only N models are allowed to use due to the Measurement Law of Japan.
Alternative to IMADA Push Pull Force Gauge PSH Seriess:
| Model | FB/FS series | PS/PSS series | PSM series | PSH series | UKK/UKT series | |
| Features | Main Feature | Low Cost | High Accuracy | High Accuracy High Resolution | High Accuracy High Capacity | Compact |
| Accuracy | ✓+ | ✓ + + | ✓ + + | ✓ + + | ✓ + | |
| Repeatability | ✓ | ✓ | ✓ + | ✓ | ✓ | |
| Handheld Use | ✓+ | ✓ + | ✓ + | ✓ | ✓ | |
| Use with Stand/Fixed | ✓+ | ✓ + | ✓ + | ✓ + | ✓ + + | |
| Image |  |
 |
 |
 |
||
| Specifications | Range | 10N to 500N | 5N to 500N | 20N to 500N | 500N to 3000N | 20N to 300N |
| Unit | N *1 | |||||
| Direction | Tensile&Compression | Tensile&Compression | Tensile&Compression | Tensile&Compression | Tensile/Compression | |
| Accuracy | +/-0.3%F.S. | +/-0.1%F.S. | +/-0.3%F.S. | |||
| Resolution | 1/100 *2 | 1/200 *2 | 1/100 *2 | |||
| Func tions | Peak Hold | ✓ + | ✓ + | ✓ + | ✓ + | ✓ + |
| Zero Reset | ✓ + | ✓ + | ✓ + | ✓ + | ✓ + | |
| Accessory | Attachments | 6 types *3 | 8 types *3 | 8 types *3 | 6 types *3 | UKK: 5 types *3 UKT: 4 types *3 |
