YG-1 Shoulder Milling Positive APKT-ST (2 Corners) Insert for Super Alloy menawarkan solusi ekonomis untuk permesinan frais di material besi, cast iron, Stainless Steel, iron alloy. Pisau frais insert ini telah dirancang untuk produktivitas yang lebih besar untuk aplikasi dengan mesin frais sesuai dengan standar ISO. Anda bisa menggunakan body frais milling cutter merek lain dan cocok digunakan asal saja diperutukkan untuk seri ISO yang serupa.
Pisau frais milling YG-1 Shoulder Milling Positive APKT-ST (2 Corners) Insert for Super Alloy dilindungi dengan lapisan coating YG602 ini merupakan senyawa lapisan ultra-padat PVD-TiAlN yang memberikan ketahanan dan kekuatan termal yang optimal. Inti material juga dibuat dari substrat Carbide Sub-Mikron yang dirancang untuk penggilingan tahan suhu tinggi dan kekerasan logam untuk menghadapi deformasi.
Sejak 1981, YG-1 Cutting tools awalnya bernama Yanggiwon Tools merupakan manufaktur pisau industri terbesar asal Korea Selatan. Pastikan anda memperoleh cutting tool yang terjamin berkualitas asli YG-1 dari METALEXTRA.COM
Fitur YG-1 Shoulder Milling Positive APKT-ST (2 Corners) Insert for Super Alloy:
Untuk aplikasi semi-roughing dengan relief chipbreaker milling dan facing, agar produktivitas lebih besar di material Stainless Steel, Titanium Alloy, Steel Cast Iron, Hitemp Alloy dengan nilai hardness lebih dari 45 HRC.
Body milling dan kunci sekrup Hex dijual terpisah
Cocok untuk kondisi pemotongan dari kecepatan mesin bubut standar hingga Pemesinan CNC yang berkecepatan tinggi.
Awet dan tahan lama lapisan coating YG602 yang merupakan senyawa lapisan ultra-padat PVD-TiAlN.
Ada minimum jumlah pembelian, satu kotak isi 10pcs tipe yang sama.
Harap dicatat:
Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat.

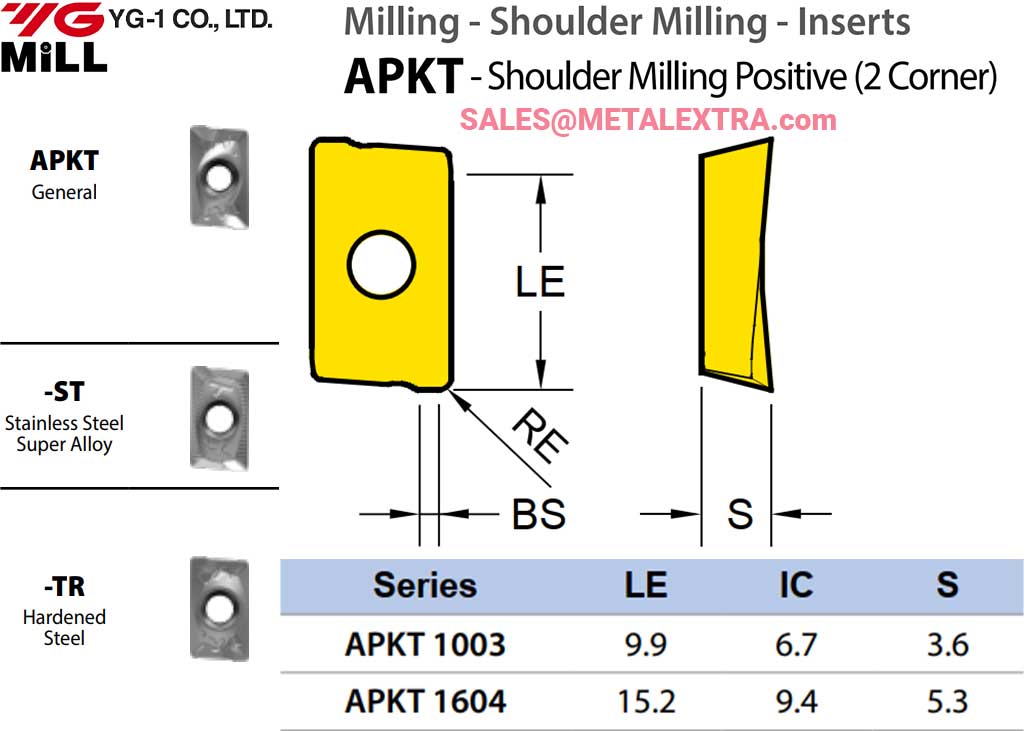

Dimension Guide for YG-1 Shoulder Milling Positive APKT-ST (2 Corners) Insert for Super Alloy:
Ordering Guide for YG-1 Shoulder Milling Positive APKT-ST (2 Corners) Insert for Super Alloy:
|
Notes: – PW : for Improved Surface Roughness |
P25 | P30 P20 | P40 | ||||||||||||
| M30 | M35 | ||||||||||||||
| K30 | K15 | ||||||||||||||
| S20 | S30 | H15 | YG5020 | ||||||||||||
| Type | Designation | RE (mm) |
Fz (mm/tooth) |
BS (mm) |
YG602 | YG622 | YG712 | YG603 | YG501 | ||||||
| APKT General |
APKT 100305 PDTR | 0.5 | 0.15 ~ 0.24 | 0.86 | ● | ||||||||||
| 0005 | |||||||||||||||
| APKT 100308 PDTR | 0.8 | 0.15 ~ 0.24 | 0.9 | ● | |||||||||||
| 0004 | |||||||||||||||
| APKT 160404 PDTR | 0.4 | 0.15 ~ 0.25 | 1.11 | ● | |||||||||||
| 0003 | |||||||||||||||
| APKT 160408 PDTR | 0.8 | 0.15 ~ 0.30 | 1.32 | ● | |||||||||||
| 0001 | |||||||||||||||
| APKT 160412 PDTR | 1.2 | 0.15 ~ 0.32 | 1.13 | ● | |||||||||||
| 0002 | |||||||||||||||
| APKT 160416 PDTR | 1.6 | 0.15 ~ 0.34 | 1.13 | ● | |||||||||||
| 0006 | |||||||||||||||
| APKT 160424 PDTR | 2.4 | 0.15 ~ 0.38 | ● | ||||||||||||
| 0255 | |||||||||||||||
| APKT-ST Stainless Steel Super Alloy |
APKT 100305 – ST | 0.5 | 0.08 ~ 0.22 | 0.86 | ● | ||||||||||
| 0278 | |||||||||||||||
| APKT 160408 – ST | 0.8 | 0.08 ~ 0.25 | 1.32 | ● | |||||||||||
| 0270 | |||||||||||||||
| APKT-TR Hardened Steel |
APKT 160404 – TR | 0.4 | 0.26 ~ 0.40 | 2.12 | ● | ● | |||||||||
| 0492 | 0505 | ||||||||||||||
| APKT 160408 – TR | 0.8 | 0.26 ~ 0.40 | 1.32 | ● | ● | ||||||||||
| 0256 | 0337 | ||||||||||||||
| APKT 160412 – TR | 1.2 | 0.26 ~ 0.40 | 2.4 | ● | ● | ||||||||||
| 0493 | 0523 | ||||||||||||||
| APKT 160416 – TR | 1.6 | 0.26 ~ 0.40 | 2.4 | ● | ● | ||||||||||
| 0472 | 0524 | ||||||||||||||
| APKT 160424 – TR | 2.4 | 0.26 ~ 0.40 | 1.5 | ● | ● | ||||||||||
| 0494 | 0520 | ||||||||||||||
Application Guide for YG-1 Shoulder Milling Positive APKT-ST (2 Corners) Insert for Super Alloy:
| Cutting Speed | Vc (m/min.) | |||||||||||||
| ISO | VDI | Sub Group | YG602 Min Max |
YG622 Min Max |
YG712 Min Max |
YG603 Min Max |
YG501 Min Max |
YG5020 Min Max |
||||||
| P | 1~5 | Non-Alloyed Steel | 140 | 380 | 140 | 400 | 170 | 300 | 90 | 230 | – | – | – | – |
| 6~9 | Low-Alloyed Steel | 120 | 300 | 120 | 320 | 180 | 250 | 70 | 210 | – | – | – | – | |
| 10~11 | High-Alloyed Steel | 70 | 150 | 70 | 170 | 100 | 140 | 60 | 100 | – | – | – | – | |
| M | 12~13 | Ferritic & Martensitic | 120 | 200 | – | – | – | – | 80 | 180 | – | – | – | – |
| 14 | Austenitic Stainless Steel | 130 | 250 | – | – | – | – | 100 | 200 | – | – | – | – | |
| K | 15~16 | Grey Cast Iron | 120 | 250 | 120 | 270 | – | – | – | – | 180 | 350 | 200 | 350 |
| 17~18 | Nodular Cast Iron | 130 | 220 | 130 | 240 | – | – | – | – | 120 | 270 | 150 | 300 | |
| N | 21~30 | Non-Ferrous Metals (Al) | – | – | – | – | – | – | – | – | – | – | – | – |
| S | 31~37 | Superalloys & Titanium | 25 | 45 | – | – | – | – | 20 | 40 | – | – | ||
| H | 38~41 | Hard Materials | 40 | 80 | 40 | 100 | – | – | – | – | 50 | 90 | – | – |
