MITSUBISHI Drill MVX 6xD ø14mm – ø63mm

harga/unit:

Info selengkapnya:

Sales@METALEXTRA.com

Categories: , Tags: , , ,

Pisau bor modular MITSUBISHI Drill MVX menawarkan pilihan ekonomis untuk aplikasi pengeboran yang berat ketika stabilitas dan keandalan diperlukan. Mata bor ini menggunakan sistem modular dengan mata pisau insert bisa dilepas dan diganti-ganti sesuai jenis material yang akan dibor. Tersedia untuk diameter ø14mm hingga ø63mm pada pengeboran maksimum 4x diameter shank atau gagang bor ini. Bor ini juga memiliki saluran aliran cairan pendingin yang mampu menghemat masa pakai dan evakuasi serpihan chips agar hasil bor jadi lebih rapi dan tak retak.

Mata bor buatan Jepang ini lengkap tersedia berdasarkan size chart mencantumkan metrik bersama dengan kombinasi ideal insert CVD luar dan insert PVD dalam. yang diperlukan. Pastikan jenis holder dan colet atau adapter anda cocok agar bisa pakai mata bor MITSUBISHI Drill MVX ini untuk aplikasi di mesin bubut manual, semi-CNC milling, Drill press, mesin bubut atau lathe dan kombinasi pada machining center yang sudah fuil multi-axis CNC.

Sejak 1942, Mitsubishi Materials Corporation (三菱マテリアル株式会社) dengan divisi cutting tools awalnya dikenal dengan nama Mitsubishi Cutting Tools, merupakan manufaktur pisau industri asal Tokyo Jepang. Saat ini cutting tool Mitsubishi dibranding dengan nama DIAEDGE, namun stok lama masih menggunakan logo Mitsubishi yang berwarna Biru. Pastikan anda memperoleh cutting tool yang terjamin berkualitas asli Mitsubishi dan DIAEDGE dari METALEXTRA.COM

Fitur MITSUBISHI Drill MVX 6xD ø14mm – ø63mm :

  • Jenis U-drill buatan Jepang untuk pengeboran general use pada material Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron.

  • Straight Shank dengan 2 Flange atau 2 ulir untuk kekakuan dan ketahanan yang maksimum

  • Gagang lebih panjang dengan saluran pendingin internal sehingga mampu untuk pengeboran dengan kedalaman 6 x D drilling depths.

  • Dudukan Alat insert  ISO tipe SPMG Flanged Cylindrical dan 0° Flat Shank menjadikan bor modular yang menawarkan kinerja yang biasanya dicapai dengan bor karbida padat dengan dudukan insert yang kaku memungkinkan penggunaan yang fleksibel dan masa pakai alat yang sangat tinggi.

  • Sistem pengeboran modular menggunakan insert kombinasi CVD blade luar & PVD blade sekali pakai – tanpa biaya rekondisi, kinerja yang konsisten, dan logistik alat yang berkurang secara signifikan dibandingkan dengan solusi pengeboran yang solid dan harus diasah.

  • Insert dijual terpisah, perhatikan jenis insert yang ingin digunakan!

  • Mudah diaplikasikan dengan mata ulir yang bisa yang dipoles untuk evakuasi chip yang lebih baik.

Harap dicatat:

Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat. Harga bisa berubah sewaktu-waktu seiring dengan perubahan nilai tukar valuta asing dan program promosi. Untuk lebih jelas silahkan hubungi: sales@Metalextra.com

Dimension Guide MITSUBISHI Drill MVX 6xD ø14mm – ø63mm:

Order Guide MITSUBISHI Drill MVX 6xD ø14mm – ø63mm:

Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX1400X2F20 14 2 28 50 93 20 25 35 2 2 1
MVX1400X3F20 14 3 42 64 107 20 25 49 2 2 1
MVX1400X4F20 14 4 56 78 121 20 25 63 2 2 1
MVX1400X5F20 14 5 70 92 135 20 25 77 2 2 1
MVX1450X2F20 14.5 2 29 51 94 20 25 36 2 2 1
MVX1450X3F20 14.5 3 43.5 65.5 108.5 20 25 50.5 2 2 1
MVX1450X4F20 14.5 4 58 80 123 20 25 65 2 2 1
MVX1450X5F20 14.5 5 72.5 94.5 137.5 20 25 79.5 2 2 1
MVX1500X2F20 15 2 30 52 95 20 25 37 2 2 1
MVX1500X3F20 15 3 45 67 110 20 25 52 2 2 1
MVX1500X4F20 15 4 60 82 125 20 25 67 2 2 1
MVX1500X5F20 15 5 75 97 140 20 25 82 2 2 1
MVX1550X2F20 15.5 2 31 53 96 20 25 38 2 2 1
MVX1550X3F20 15.5 3 46.5 68.5 111.5 20 25 53.5 2 2 1
MVX1550X4F20 15.5 4 62 84 127 20 25 69 2 2 1
MVX1550X5F20 15.5 5 77.5 99.5 142.5 20 25 84.5 2 2 1
MVX1600X2F20 16 2 32 54 97 20 25 39 2 2 1
MVX1600X3F20 16 3 48 70 113 20 25 55 2 2 1
MVX1600X4F20 16 4 64 86 129 20 25 71 2 2 1
MVX1600X5F20 16 5 80 102 145 20 25 87 2 2 1
MVX1650X2F20 16.5 2 33 55 98 20 25 40 2 2 1
MVX1650X3F20 16.5 3 49.5 71.5 114.5 20 25 56.5 2 2 1
MVX1650X4F20 16.5 4 66 88 131 20 25 73 2 2 1
MVX1650X5F20 16.5 5 82.5 104.5 147.5 20 25 89.5 2 2 1
MVX1700X2F20 17 2 34 56 99 20 25 41 2 2 1
MVX1700X3F20 17 3 51 73 116 20 25 58 2 2 1
MVX1700X4F20 17 4 68 90 133 20 25 75 2 2 1
MVX1700X5F20 17 5 85 107 150 20 25 92 2 2 1
MVX1700X6F20 17 6 102 124 167 20 25 109 2 2 1
MVX1750X2F25 17.5 2 35 62 112 25 32 42 2 2 1
MVX1750X3F25 17.5 3 52.5 79.5 129.5 25 32 59 2 2 1
MVX1750X4F25 17.5 4 70 97 147 25 32 77 2 2 1
MVX1750X5F25 17.5 5 87.5 114.5 164.5 25 32 94 2 2 1
MVX1750X6F25 17.5 6 105 132 182 25 32 112 2 2 1
MVX1800X2F25 18 2 36 63 113 25 32 43 2 2 1
MVX1800X3F25 18 3 54 81 131 25 32 61 2 2 1
MVX1800X4F25 18 4 72 99 149 25 32 79 2 2 1
MVX1800X5F25 18 5 90 117 167 25 32 97 2 2 1
MVX1800X6F25 18 6 108 135 185 25 32 115 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX1850X2F25 18.5 2 37 64 114 25 32 44 2 2 1
MVX1850X3F25 18.5 3 55.5 82.5 132.5 25 32 62 2 2 1
MVX1850X4F25 18.5 4 74 101 151 25 32 81 2 2 1
MVX1850X5F25 18.5 5 92.5 119.5 169.5 25 32 99 2 2 1
MVX1850X6F25 18.5 6 111 138 188 25 32 118 2 2 1
MVX1900X2F25 19 2 38 65 115 25 32 45 2 2 1
MVX1900X3F25 19 3 57 84 134 25 32 64 2 2 1
MVX1900X4F25 19 4 76 103 153 25 32 83 2 2 1
MVX1900X5F25 19 5 95 122 172 25 32 102 2 2 1
MVX1900X6F25 19 6 114 141 191 25 32 121 2 2 1
MVX1950X2F25 19.5 2 39 66 116 25 32 46 2 2 1
MVX1950X3F25 19.5 3 58.5 85.5 135.5 25 32 65 2 2 1
MVX1950X4F25 19.5 4 78 105 155 25 32 85 2 2 1
MVX1950X5F25 19.5 5 97.5 124.5 174.5 25 32 104 2 2 1
MVX1950X6F25 19.5 6 117 144 194 25 32 124 2 2 1
MVX2000X2F25 20 2 40 67 117 25 32 47 2 2 1
MVX2000X3F25 20 3 60 87 137 25 32 67 2 2 1
MVX2000X4F25 20 4 80 107 157 25 32 87 2 2 1
MVX2000X5F25 20 5 100 127 177 25 32 107 2 2 1
MVX2000X6F25 20 6 120 147 197 25 32 127 2 2 1
MVX2050X2F25 20.5 2 41 68 118 25 32 48 2 2 1
MVX2050X3F25 20.5 3 61.5 88.5 138.5 25 32 68 2 2 1
MVX2100X2F25 21 2 42 69 119 25 32 49 2 2 1
MVX2100X3F25 21 3 63 90 140 25 32 70 2 2 1
MVX2100X4F25 21 4 84 111 161 25 32 91 2 2 1
MVX2100X5F25 21 5 105 132 182 25 32 112 2 2 1
MVX2100X6F25 21 6 126 153 203 25 32 133 2 2 1
MVX2150X2F25 21.5 2 43 70 120 25 32 50 2 2 1
MVX2150X3F25 21.5 3 64.5 91.5 141.5 25 32 71 2 2 1
MVX2200X2F25 22 2 44 71 121 25 32 51 2 2 1
MVX2200X3F25 22 3 66 93 143 25 32 73 2 2 1
MVX2200X4F25 22 4 88 115 165 25 32 95 2 2 1
MVX2200X5F25 22 5 110 137 187 25 32 117 2 2 1
MVX2200X6F25 22 6 132 159 209 25 32 139 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX2250X2F25 22.5 2 45 72 122 25 32 52 2 2 1
MVX2250X3F25 22.5 3 67.5 94.5 144.5 25 32 74 2 2 1
MVX2300X2F25 23 2 46 73 123 25 32 53 2 2 1
MVX2300X3F25 23 3 69 96 146 25 32 76 2 2 1
MVX2300X4F25 23 4 92 119 169 25 32 99 2 2 1
MVX2300X5F25 23 5 115 142 192 25 32 122 2 2 1
MVX2300X6F25 23 6 138 165 215 25 32 145 2 2 1
MVX2350X2F25 23.5 2 47 74 124 25 32 54 2 2 1
MVX2350X3F25 23.5 3 70.5 97.5 147.5 25 32 77 2 2 1
MVX2400X2F25 24 2 48 75 125 25 32 55 2 2 1
MVX2400X3F25 24 3 72 99 149 25 32 79 2 2 1
MVX2400X4F25 24 4 96 123 173 25 32 103 2 2 1
MVX2400X5F25 24 5 120 147 197 25 32 127 2 2 1
MVX2400X6F25 24 6 144 171 221 25 32 151 2 2 1
MVX2450X2F25 24.5 2 49 76 126 25 32 56 2 2 1
MVX2450X3F25 24.5 3 73.5 100.5 150.5 25 32 80 2 2 1
MVX2500X2F25 25 2 50 77 127 25 32 57 2 2 1
MVX2500X3F25 25 3 75 102 152 25 32 82 2 2 1
MVX2500X4F25 25 4 100 127 177 25 32 107 2 2 1
MVX2500X5F25 25 5 125 152 202 25 32 132 2 2 1
MVX2500X6F25 25 6 150 177 227 25 32 157 2 2 1
MVX2550X2F25 25.5 2 51 78 128 25 32 58 2 2 1
MVX2550X3F25 25.5 3 76.5 103.5 153.5 25 32 83 2 2 1
MVX2600X2F32 26 2 52 79 134 32 42 59 2 2 1
MVX2600X3F32 26 3 78 105 160 32 42 85 2 2 1
MVX2600X4F32 26 4 104 131 186 32 42 111 2 2 1
MVX2600X5F32 26 5 130 157 212 32 42 137 2 2 1
MVX2600X6F32 26 6 156 183 238 32 42 163 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX2650X2F32 26.5 2 53 80 135 32 42 60 2 2 1
MVX2650X3F32 26.5 3 79.5 106.5 161.5 32 42 86 2 2 1
MVX2700X2F32 27 2 54 81 136 32 42 61 2 2 1
MVX2700X3F32 27 3 81 108 163 32 42 88 2 2 1
MVX2700X4F32 27 4 108 135 190 32 42 115 2 2 1
MVX2700X5F32 27 5 135 162 217 32 42 142 2 2 1
MVX2700X6F32 27 6 162 189 244 32 42 169 2 2 1
MVX2750X2F32 27.5 2 55 82 137 32 42 62 2 2 1
MVX2750X3F32 27.5 3 82.5 109.5 164.5 32 42 89 2 2 1
MVX2800X2F32 28 2 56 83 138 32 42 63 2 2 1
MVX2800X3F32 28 3 84 111 166 32 42 91 2 2 1
MVX2800X4F32 28 4 112 139 194 32 42 119 2 2 1
MVX2800X5F32 28 5 140 167 222 32 42 147 2 2 1
MVX2800X6F32 28 6 168 195 250 32 42 175 2 2 1
MVX2850X2F32 28.5 2 57 84 139 32 42 64 2 2 1
MVX2850X3F32 28.5 3 85.5 112.5 167.5 32 42 92 2 2 1
MVX2900X2F32 29 2 58 85 140 32 42 65 2 2 1
MVX2900X3F32 29 3 87 114 169 32 42 94 2 2 1
MVX2900X4F32 29 4 116 143 198 32 42 123 2 2 1
MVX2900X5F32 29 5 145 172 227 32 42 152 2 2 1
MVX2900X6F32 29 6 174 201 256 32 42 181 2 2 1
MVX2950X2F32 29.5 2 59 86 141 32 42 66 2 2 1
MVX2950X3F32 29.5 3 88.5 115.5 170.5 32 42 95 2 2 1
MVX3000X2F32 30 2 60 87 142 32 42 67 2 2 1
MVX3000X3F32 30 3 90 117 172 32 42 97 2 2 1
MVX3000X4F32 30 4 120 147 202 32 42 127 2 2 1
MVX3000X5F32 30 5 150 177 232 32 42 157 2 2 1
MVX3000X6F32 30 6 180 207 262 32 42 187 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX3050X3F32 30.5 3 91.5 118.5 173.5 32 42 98 2 2 1
MVX3100X2F40 31 2 62 89 154 40 50 69 2 2 1
MVX3100X3F40 31 3 93 120 185 40 50 100 2 2 1
MVX3100X4F40 31 4 124 151 216 40 50 131 2 2 1
MVX3100X5F40 31 5 155 182 247 40 50 162 2 2 1
MVX3100X6F40 31 6 186 213 278 40 50 193 2 2 1
MVX3150X3F40 31.5 3 94.5 121.5 186.5 40 50 101 2 2 1
MVX3200X2F40 32 2 64 91 156 40 50 71 2 2 1
MVX3200X3F40 32 3 96 123 188 40 50 103 2 2 1
MVX3200X4F40 32 4 128 155 220 40 50 135 2 2 1
MVX3200X5F40 32 5 160 187 252 40 50 167 2 2 1
MVX3200X6F40 32 6 192 219 284 40 50 199 2 2 1
MVX3250X3F40 32.5 3 97.5 124.5 189.5 40 50 104 2 2 1
MVX3300X2F40 33 2 66 93 158 40 50 73 2 2 1
MVX3300X3F40 33 3 99 126 191 40 50 106 2 2 1
MVX3300X4F40 33 4 132 159 224 40 50 139 2 2 1
MVX3300X5F40 33 5 165 192 257 40 50 172 2 2 1
MVX3300X6F40 33 6 198 225 290 40 50 205 2 2 1
MVX3350X3F40 33.5 3 100.5 127.5 192.5 40 50 107 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX3400X2F40 34 2 68 105 170 40 50 75 2 2 1
MVX3400X3F40 34 3 102 139 204 40 50 109 2 2 1
MVX3400X4F40 34 4 136 173 238 40 50 143 2 2 1
MVX3400X5F40 34 5 170 207 272 40 50 177 2 2 1
MVX3400X6F40 34 6 204 241 306 40 50 211 2 2 1
MVX3450X3F40 34.5 3 103.5 140.5 205.5 40 50 110 2 2 1
MVX3500X2F40 35 2 70 107 172 40 50 77 2 2 1
MVX3500X3F40 35 3 105 142 207 40 50 112 2 2 1
MVX3500X4F40 35 4 140 177 242 40 50 147 2 2 1
MVX3500X5F40 35 5 175 212 277 40 50 182 2 2 1
MVX3500X6F40 35 6 210 247 312 40 50 217 2 2 1
MVX3550X3F40 35.5 3 106.5 143.5 208.5 40 50 113 2 2 1
MVX3600X2F40 36 2 72 109 174 40 50 79 2 2 1
MVX3600X3F40 36 3 108 145 210 40 50 115 2 2 1
MVX3600X4F40 36 4 144 181 246 40 50 151 2 2 1
MVX3600X5F40 36 5 180 217 282 40 50 187 2 2 1
MVX3600X6F40 36 6 216 253 318 40 50 223 2 2 1
MVX3700X2F40 37 2 74 111 176 40 50 81 2 2 1
MVX3700X3F40 37 3 111 148 213 40 50 118 2 2 1
MVX3700X4F40 37 4 148 185 250 40 50 155 2 2 1
MVX3700X5F40 37 5 185 222 287 40 50 192 2 2 1
MVX3700X6F40 37 6 222 259 324 40 50 229 2 2 1
MVX3800X2F40 38 2 76 113 178 40 50 83 2 2 1
MVX3800X3F40 38 3 114 151 216 40 50 121 2 2 1
MVX3800X4F40 38 4 152 189 254 40 50 159 2 2 1
MVX3800X5F40 38 5 190 227 292 40 50 197 2 2 1
MVX3800X6F40 38 6 228 265 330 40 50 235 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX3900X2F40 39 2 78 115 180 40 50 85 2 2 1
MVX3900X3F40 39 3 117 154 219 40 50 124 2 2 1
MVX3900X4F40 39 4 156 193 258 40 50 163 2 2 1
MVX3900X5F40 39 5 195 232 297 40 50 202 2 2 1
MVX3900X6F40 39 6 234 271 336 40 50 241 2 2 1
MVX4000X2F40 40 2 80 117 182 40 50 87 2 2 1
MVX4000X3F40 40 3 120 157 222 40 50 127 2 2 1
MVX4000X4F40 40 4 160 197 262 40 50 167 2 2 1
MVX4000X5F40 40 5 200 237 302 40 50 207 2 2 1
MVX4000X6F40 40 6 240 277 342 40 50 247 2 2 1
MVX4100X2F40 41 2 82 119 184 40 50 89 2 2 1
MVX4100X3F40 41 3 123 160 225 40 50 130 2 2 1
MVX4100X4F40 41 4 164 201 266 40 50 171 2 2 1
MVX4100X5F40 41 5 205 242 307 40 50 212 2 2 1
MVX4100X6F40 41 6 246 283 348 40 50 253 2 2 1
MVX4200X2F40 42 2 84 121 186 40 50 91 2 2 1
MVX4200X3F40 42 3 126 163 228 40 50 133 2 2 1
MVX4200X4F40 42 4 168 205 270 40 63 175 2 2 1
MVX4200X4F50 42 4 168 205 280 50 63 175 2 2 1
MVX4200X5F40 42 5 210 247 312 40 63 217 2 2 1
MVX4200X5F50 42 5 210 247 322 50 63 217 2 2 1
MVX4200X6F40 42 6 252 289 354 40 63 259 2 2 1
MVX4200X6F50 42 6 252 289 364 50 63 259 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX4300X2F40 43 2 86 123 188 40 50 93 2 2 1
MVX4300X3F40 43 3 129 166 231 40 50 136 2 2 1
MVX4300X4F40 43 4 172 209 274 40 63 179 2 2 1
MVX4300X4F50 43 4 172 209 284 50 63 179 2 2 1
MVX4300X5F40 43 5 215 252 317 40 63 222 2 2 1
MVX4300X5F50 43 5 215 252 327 50 63 222 2 2 1
MVX4300X6F40 43 6 258 295 360 40 63 265 2 2 1
MVX4300X6F50 43 6 258 295 370 50 63 265 2 2 1
MVX4400X2F40 44 2 88 125 190 40 50 95 2 2 1
MVX4400X3F40 44 3 132 169 234 40 50 139 2 2 1
MVX4400X4F40 44 4 176 213 278 40 63 183 2 2 1
MVX4400X4F50 44 4 176 213 288 50 63 183 2 2 1
MVX4400X5F40 44 5 220 257 322 40 63 227 2 2 1
MVX4400X5F50 44 5 220 257 332 50 63 227 2 2 1
MVX4500X2F40 45 2 90 127 192 40 50 97 2 2 1
MVX4500X3F40 45 3 135 172 237 40 50 142 2 2 1
MVX4500X4F40 45 4 180 217 282 40 63 187 2 2 1
MVX4500X4F50 45 4 180 217 292 50 63 187 2 2 1
MVX4500X5F40 45 5 225 262 327 40 63 232 2 2 1
MVX4500X5F50 45 5 225 262 337 50 63 232 2 2 1
MVX4600X2F40 46 2 92 129 194 40 50 99 2 2 1
MVX4600X3F40 46 3 138 175 240 40 50 145 2 2 1
MVX4600X4F40 46 4 184 221 286 40 63 191 2 2 1
MVX4600X4F50 46 4 184 221 296 50 63 191 2 2 1
MVX4600X5F40 46 5 230 267 332 40 63 237 2 2 1
MVX4600X5F50 46 5 230 267 342 50 63 237 2 2 1
MVX4700X2F40 47 2 94 141 206 40 63 101 2 2 1
MVX4700X3F40 47 3 141 188 253 40 63 148 2 2 1
MVX4700X4F40 47 4 188 235 300 40 63 195 2 2 1
MVX4700X4F50 47 4 188 235 310 50 63 195 2 2 1
MVX4700X5F40 47 5 235 282 347 40 63 242 2 2 1
MVX4700X5F50 47 5 235 282 357 50 63 242 2 2 1
MVX4800X2F40 48 2 96 143 208 40 63 103 2 2 1
MVX4800X3F40 48 3 144 191 256 40 63 151 2 2 1
MVX4800X4F40 48 4 192 239 304 40 63 199 2 2 1
MVX4800X4F50 48 4 192 239 314 50 63 199 2 2 1
MVX4800X5F40 48 5 240 287 352 40 63 247 2 2 1
MVX4800X5F50 48 5 240 287 362 50 63 247 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX4900X2F40 49 2 98 145 210 40 63 105 2 2 1
MVX4900X3F40 49 3 147 194 259 40 63 154 2 2 1
MVX4900X4F40 49 4 196 243 308 40 63 203 2 2 1
MVX4900X4F50 49 4 196 243 318 50 63 203 2 2 1
MVX4900X5F40 49 5 245 292 357 40 63 252 2 2 1
MVX4900X5F50 49 5 245 292 367 50 63 252 2 2 1
MVX5000X2F40 50 2 100 147 212 40 63 107 2 2 1
MVX5000X3F40 50 3 150 197 262 40 63 157 2 2 1
MVX5000X4F40 50 4 200 247 312 40 63 207 2 2 1
MVX5000X4F50 50 4 200 247 322 50 63 207 2 2 1
MVX5000X5F40 50 5 250 297 362 40 63 257 2 2 1
MVX5000X5F50 50 5 250 297 372 50 63 257 2 2 1
MVX5100X2F40 51 2 102 149 214 40 63 109 2 2 1
MVX5100X3F40 51 3 153 200 265 40 63 160 2 2 1
MVX5100X4F40 51 4 204 251 316 40 63 211 2 2 1
MVX5100X4F50 51 4 204 251 326 50 63 211 2 2 1
MVX5100X5F40 51 5 255 302 367 40 63 262 2 2 1
MVX5100X5F50 51 5 255 302 377 50 63 262 2 2 1
MVX5200X2F40 52 2 104 151 216 40 63 111 2 2 1
MVX5200X3F40 52 3 156 203 268 40 63 163 2 2 1
MVX5200X4F40 52 4 208 255 320 40 63 215 2 2 1
MVX5200X4F50 52 4 208 255 330 50 63 215 2 2 1
MVX5200X5F40 52 5 260 307 372 40 63 267 2 2 1
MVX5200X5F50 52 5 260 307 382 50 63 267 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX5300X2F40 53 2 106 153 218 40 63 113 2 2 1
MVX5300X3F40 53 3 159 206 271 40 63 166 2 2 1
MVX5300X4F40 53 4 212 259 324 40 63 219 2 2 1
MVX5300X4F50 53 4 212 259 334 50 63 219 2 2 1
MVX5300X5F40 53 5 265 312 377 40 63 272 2 2 1
MVX5300X5F50 53 5 265 312 387 50 63 272 2 2 1
MVX5400X2F40 54 2 108 155 220 40 63 115 2 2 1
MVX5400X3F40 54 3 162 209 274 40 63 169 2 2 1
MVX5400X4F40 54 4 216 263 328 40 63 223 2 2 1
MVX5400X4F50 54 4 216 263 338 50 63 223 2 2 1
MVX5400X5F40 54 5 270 317 382 40 63 277 2 2 1
MVX5400X5F50 54 5 270 317 392 50 63 277 2 2 1
MVX5500X2F40 55 2 110 157 222 40 63 117 2 2 1
MVX5500X3F40 55 3 165 212 277 40 63 172 2 2 1
MVX5500X4F40 55 4 220 267 332 40 63 227 2 2 1
MVX5500X4F50 55 4 220 267 342 50 63 227 2 2 1
MVX5500X5F40 55 5 275 322 387 40 63 282 2 2 1
MVX5500X5F50 55 5 275 322 397 50 63 282 2 2 1
MVX5600X2F40 56 2 112 159 224 40 63 119 2 2 1
MVX5600X3F40 56 3 168 215 280 40 63 175 2 2 1
MVX5600X4F40 56 4 224 271 336 40 63 231 2 2 1
MVX5600X4F50 56 4 224 271 346 50 63 231 2 2 1
MVX5600X5F40 56 5 280 327 392 40 63 287 2 2 1
MVX5600X5F50 56 5 280 327 402 50 63 287 2 2 1
MVX5700X2F40 57 2 114 161 226 40 68 121 2 2 1
MVX5700X3F40 57 3 171 218 283 40 68 178 2 2 1
MVX5700X4F40 57 4 228 275 340 40 68 235 2 2 1
MVX5700X4F50 57 4 228 275 350 50 68 235 2 2 1
MVX5700X5F40 57 5 285 332 397 40 68 292 2 2 1
MVX5700X5F50 57 5 285 332 407 50 68 292 2 2 1
MVX5800X2F40 58 2 116 163 228 40 68 123 2 2 1
MVX5800X3F40 58 3 174 221 286 40 68 181 2 2 1
MVX5800X4F40 58 4 232 279 344 40 68 239 2 2 1
MVX5800X4F50 58 4 232 279 354 50 68 239 2 2 1
MVX5800X5F40 58 5 290 337 402 40 68 297 2 2 1
MVX5800X5F50 58 5 290 337 412 50 68 297 2 2 1
Order Code. DC ld LU LPR OAL DCON DCSFMS LBX Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Effective Cutting Edge
MVX5900X2F40 59 2 118 165 230 40 68 125 2 2 1
MVX5900X3F40 59 3 177 224 289 40 68 184 2 2 1
MVX5900X4F40 59 4 236 283 348 40 68 243 2 2 1
MVX5900X4F50 59 4 236 283 358 50 68 243 2 2 1
MVX5900X5F40 59 5 295 342 407 40 68 302 2 2 1
MVX5900X5F50 59 5 295 342 417 50 68 302 2 2 1
MVX6000X2F40 60 2 120 167 232 40 68 127 2 2 1
MVX6000X3F40 60 3 180 227 292 40 68 187 2 2 1
MVX6000X4F40 60 4 240 287 352 40 68 247 2 2 1
MVX6000X4F50 60 4 240 287 362 50 68 247 2 2 1
MVX6000X5F40 60 5 300 347 412 40 68 307 2 2 1
MVX6000X5F50 60 5 300 347 422 50 68 307 2 2 1
MVX6100X2F40 61 2 122 169 234 40 68 129 2 2 1
MVX6100X3F40 61 3 183 230 295 40 68 190 2 2 1
MVX6100X4F40 61 4 244 291 356 40 68 251 2 2 1
MVX6100X4F50 61 4 244 291 366 50 68 251 2 2 1
MVX6100X5F40 61 5 305 352 417 40 68 312 2 2 1
MVX6100X5F50 61 5 305 352 427 50 68 312 2 2 1
MVX6200X2F40 62 2 124 171 236 40 68 131 2 2 1
MVX6200X3F40 62 3 186 233 298 40 68 193 2 2 1
MVX6200X4F40 62 4 248 295 360 40 68 255 2 2 1
MVX6200X4F50 62 4 248 295 370 50 68 255 2 2 1
MVX6200X5F40 62 5 310 357 422 40 68 317 2 2 1
MVX6200X5F50 62 5 310 357 432 50 68 317 2 2 1
MVX6300X2F40 63 2 126 173 238 40 68 133 2 2 1
MVX6300X3F40 63 3 189 236 301 40 68 196 2 2 1
MVX6300X4F40 63 4 252 299 364 40 68 259 2 2 1
MVX6300X4F50 63 4 252 299 374 50 68 259 2 2 1
MVX6300X5F40 63 5 315 362 427 40 68 322 2 2 1
MVX6300X5F50 63 5 315 362 437 50 68 322 2 2 1

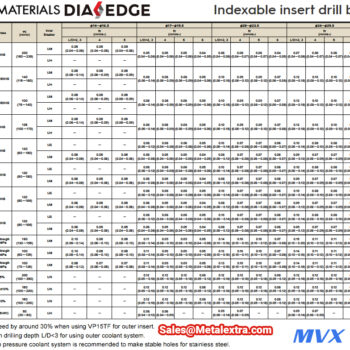

Application Guide MITSUBISHI Drill MVX 6xD ø14mm – ø63mm:
