INSIZE Profile Projector ISP-A5000E menawarkan akurasi pengukuran secara visual dengan pembesaran hingga 100x. Kestabilan pengamatan benda kerja bisa dilakukan dengan penyetelan spesimen secara manual dibawah lensa mikroskop. Anda bisa setel Stage manual yang menggunakan handwheel engkol gerakan X dan Y ± 0.5μm dengan luas meja stage penampang kaca 260x160mm dan kaca proyektor Ø300mm untuk pengamatan.
Ada dua mode lampu latar kontur dan lampu pantul permukaan dengan knob pengatur kecerahan. Posisi meja stage juga bisa diamati dari tampilan DRO. Garis referensi cross-hair untuk pengukuran sudah dikalibrasi chart protractor graduasi 1 dan rentang 1mm. dengan Stage manual ini menggunakan mekanisme presisi tinggi dan gerakan halus. Frame terbuat dari paduan aluminium dan tahap rotasi sangat ringan. Hasil pengukuran bisa dicatat dan kirim secara real-time via kabel data ke PC dengan software spreadsheet seperti MS Excel atau CAD.
Sejak tahun 1995, INSIZE merupakan manufaktur alat ukur yang sangat bervariatif dengan harga yang sangat terjangkau. Keaslian produk INSIZE hanya terjamin jika anda memperolehnya dari Metalextra.com.
Fitur INSIZE Profile Projector 100x with Edge Detector, USB Output ISP-A5000E Ø300mm:
Dengan fitur Edge detector dan tampilan pencatat kordinat meja stage di DRO
Akurasi: (3 + L / 75)μm L adalah panjang pengukuran dalam mm
Perpindahan sumbu XY:dengan rentang 200x100mm
Graduasi protractor cross-hair 1mm dengan
Torsi Beban maksimum: 49N (5kgf)
Ukuran penampang stage: 60x60mm
Berat unit: 160kg, berat maksimum benda kerja yang diukur 50 Kg
Kabel data USB dan Serial RS232C
Untuk diameter sekrup dan skema plate, silahkan lihat di deskripsi bawah
Harap dicatat:
Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat. Harga bisa berubah sewaktu-waktu seiring dengan perubahan nilai tukar valuta asing dan program promosi. Untuk lebih jelas silahkan hubungi: Sales@Metalextra.com

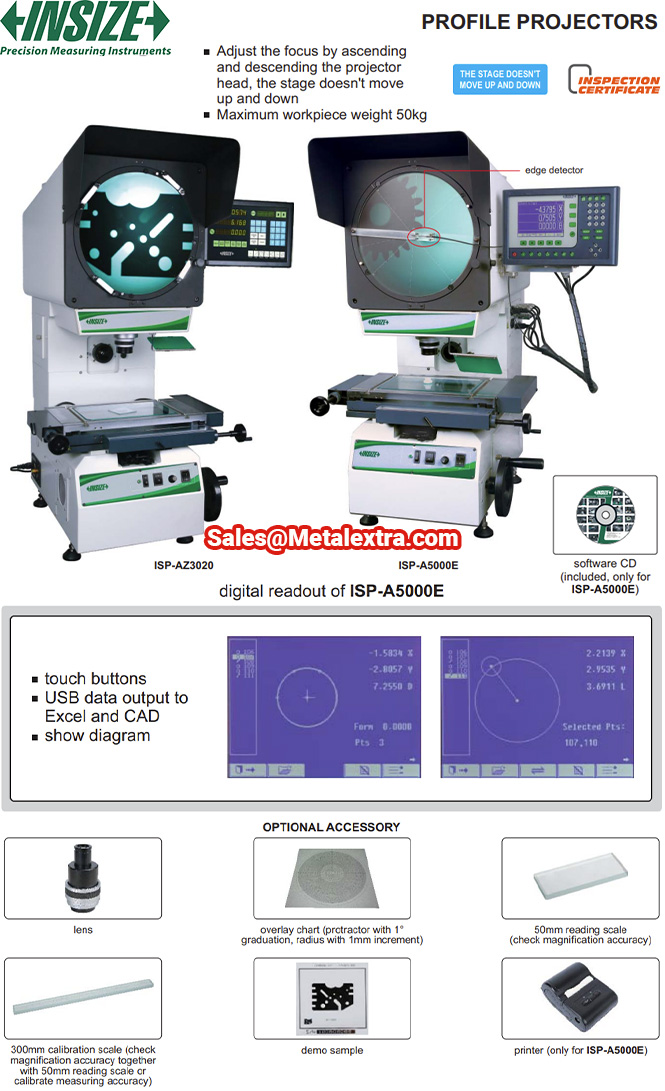

Technical Guide INSIZE Profile Projector 100x with Edge Detector, USB Output ISP-A5000E:
Ordering Guide INSIZE Profile Projector 100x with Edge Detector, USB Output ISP-A5000E:
| Order Code | ISP-AZ3020 | ISP-A5000E | |
| Edge detector | not included | included | |
| Lens | magnification | 10X (included) or 20X (optional) or 50X (optional) or 100X (optional) | |
| view field | ⌀30mm or ⌀15mm (optional) or ⌀6mm (optional) or ⌀3mm (optional) | ||
| working distance | 77.7mm or 44.3mm (optional) or 38.4mm (optional) or 25.3mm (optional) | ||
| Max. workpiece height | 100mm | ||
| Magnification accuracy | ±0.08% | ||
| Image | erect image | ||
| Projector screen | diameter: 0300mm | ||
| rotation range: 0°-360°, resolution: 1′ or 0.01° | |||
| reference lines: cross-hairs | |||
| Stage | metal stage size | 404x228mm | |
| glass stage size | 260x160mm | ||
| X-Y stage travel | range: 200x100mm | ||
| resolution: 0.5μm | |||
| accuracy: (3+L/75)μm L is the measuring length in mm | |||
| Z (focus) travel range | 100mm | ||
| max. load capacity | 50kg | ||
| Illumination | contour illumination: 24V/(50W halogen lamp, brightness is adjustable | ||
| surface illumination: 24V/(50W halogen lamp, brightness is adjustable | |||
| Data processing unit |
display | X-Y stage travel, screen rotation | |
| output | RS232C | RS232C, LISS (data output to Excel and CAD) | |
| function |  measure coordinate of point |
measure coordinate of point | |
 measure coordinate of line |
measure coordinate of line | ||
 measure center coordinate,radius of circle with three points |
measure center coordinate, radius of circle with three points |
||
 measure distance between two objects |
measure distance between two objects | ||
 measure angle with four points or two lines |
measure angle with four points or two lines | ||
 set origin of coordinate |
coordinate transform | ||
 coordinate transform |
choose measurement object automatically according to the | ||
 set midpoint of coordinate |
selective point and display the result | ||
| advanced function | – | programming for batch measurements | |
| Power supply | 110/220V, 50/60Hz | ||
| Dimension (LxWx11) | 780x780x1100mm | ||
| Weight | 160kg | ||
| STANDARD DELIVERY | OPTIONAL ACCESSORY | ||
| Main unit | 1 pc | 20X lens with half-reflection mirror and oblique illuminator mirror | ISP-A5000-LENS20X |
| 10X lens with half-reflection mirror and oblique illuminator mirror | 1 pc | 50 X lens with half-reflection mirror | ISP-A5000-LENS50X |
| Overlay chart clip | 4 pcs | 100X lens with half-reflection mirror | ISP-A5000-LENS100X |
| Foot-switch | 1 pc | Overlay chart | ISP-A5000-CHART |
| Software (only for ISP-A5000E) and USB cable | 1 pc | 50mm reading scale | ISP-A5000-SCALE50 |
| Anti-dust cover | 1 pc | 300mm calibration scale | ISP-A5000-RULE |
| NOTES: Max Workpiece weight 50Kg | Demo sample | ISP-A5000-DEMO | |
| Printer (only for ISP-A5000E) | ISP-A5000-PRINTER | ||
