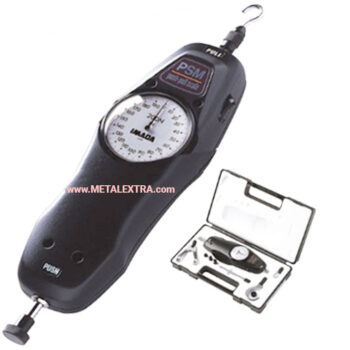

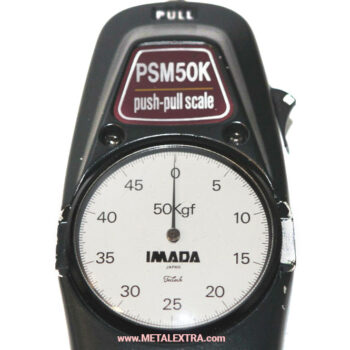

IMADA Push Pull Force Gauge PSM Series merupakan solusi inovatif dalam mengukur gaya tekan atau compression test maupun gaya tarik atau stretch test dalam pengujian Tension measurement. Compression measurement. Abrasion measurement. Anda bisa menggunakan beragam aksesoris maupun jig yang sesuai dengan model pengujian yang diinginkan. konstruksi pengukur gaya mekanis IMADA Push Pull Force Gauge PSM Series f akan tahan terhadap lingkungan industri dan mempertahankan akurasi untuk periode yang lama. Desain ergonomis membuatnya ideal untuk digunakan dengan tangan, atau dapat dipasang ke tempat uji. Cincin Nol-Tare memungkinkan Anda untuk membuat nol tolok ukur untuk mengimbangi pengukuran attachment dan perubahan posisi pengukuran. Sakelar pemilih tahan waktu nyata / puncak memungkinkan Anda untuk mengamati transien atau menangkap puncak. Pengukur gaya IMADA Push Pull Force Gauge PSM 20N(2kgf) to 500N(50kgf) merupakan pengukur gaya analog dan tidak memerlukan baterai, sehingga bisa digunakan kapan saja. Banyak rentang yang tersedia untuk mencakup semua kebutuhan pengukuran kekuatan Anda (juga tersedia dalam satuan Newtons).

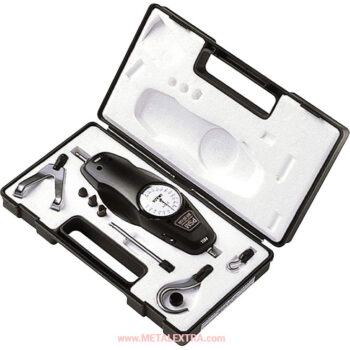

IMADA Push Pull Force Gauge PSM Series cocok digunakan dengan beragam model Stand vertikal, horizontal maupun ketika mengukur kualitas pegas, efektivitas kait pintu, pengujian kawat, kompresi dan area lain yang memerlukan pengukuran gaya yang konstan dan presisi. Pengukur gaya mekanis IMADA Force Gauge tipe PS dijual sebagai kit, lengkap dengan pengukur, tas plastik keras, tujuh attachment pengukur (kepala datar, kerucut, pahat, berlekuk, kait kecil, kait besar, dan kait-Y), dan batang ekstensi. Resolusi PS 2 kali lebih halus daripada pengukur gaya mekanis FB.
Sejak 1947, IMADA Co Ltd. memproduksi solusi presisi asal kota Toyohashi, Aichi Jepang. Pastikan kehandalan dan keaslian produk Force Gauge IMADA dengan membelinya di Metalextra.com.
Fitur IMADA Push Pull Force Gauge PSS Series 20N(2kgf) to 500N(50kgf):
Mempertahankan tingkat akurasi yang tinggi untuk periode yang lama dengan konstruksi logam tugas berat dan ergonomis
Lebih presisi dari model IMADA FB/FS (+/- 0,3% F.S) dengan akurasi tinggi +/- 0,1% F.S atau kurang.
Tersedia dalam kapasitas mulai 20N(2kgf) to 500N(50kgf).
Tidak perlu baterai sehingga aman secara intrinsik di lingkungan berbahaya
8 aksesori tambahan disertakan, Set lengkap aksesori dan tas jinjing sudah termasuk.
Mode waktu nyata dan puncak
Tes cepat dimungkinkan untuk test tekan dan test tarik manual.
Harap dicatat: Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat.
Order Guide IMADA Precision Force Gauge PSM Series 20N to 500N:
| Model | PSM series |
| Accuracy | +/-0.1% F.S |
| Stroke | 10mm |
| Unit of measurement | Please refer to the table below |
| Reading method | Real-time track or Peak-hold |
| Divisions | 200lines* |
| Operating temperature | 0 to +40 degree Celcius |
| Weight ** | Approx. 660g(PSM-300N) |
| Accessory | 8 kinds of attachments,Inspection certificate, Instruction manual, Carrying case |
*30N, 300N, 3K, 30K: 150 divisions.
**Weight varies according to the capacities even in the same series, so we note the weight of the most representative one.
Model table of PSM series Precision Model Mechanical Force Gauge
| Model | Capacity | 1 division | Thread |
| PSM-20N | 20N | 0.1N | M6 |
| PSM-30N | 30N | 0.2N | |
| PSM-50N | 50N | 0.25N | |
| PSM-100 N | 100N | 0.5N | |
| PSM-200N | 200N | 1N | |
| PSM-300N | 300N | 2N | |
| PSM-500N | 500N | 2.5N | |
| Model(NOT available in Japan) | Capacity | 1 division | Thread |
| PSM-2K | 2kgf | 10gf | M6 |
| PSM-3K | 3kgf | 20gf | |
| PSM-5K | 5kgf | 25gf | |
| PSM-10K | 10kgf | 50gf | |
| PSM-20K | 20kgf | 100gf | |
| PSM-30K | 30kgf | 200gf | |
| PSM-50K | 50kgf | 250gf |
*In Japan, only N models are allowed to use due to the Measurement Law of Japan.
| Model | FB/FS series | PS/PSS series | PSM series | PSH series | UKK/UKT series | |
| Features | Main Feature | Low Cost | High Accuracy | High Accuracy High Resolution | High Accuracy High Capacity | Compact |
| Accuracy | ✓+ | ✓ + + | ✓ + + | ✓ + + | ✓ + | |
| Repeatability | ✓ | ✓ | ✓ + | ✓ | ✓ | |
| Handheld Use | ✓+ | ✓ + | ✓ + | ✓ | ✓ | |
| Use with Stand/Fixed | ✓+ | ✓ + | ✓ + | ✓ + | ✓ + + | |
| Image |  |
 |
 |
 |
||
| Specifications | Range | 10N to 500N | 5N to 500N | 20N to 500N | 500N to 3000N | 20N to 300N |
| Unit | N *1 | |||||
| Direction | Tensile&Compression | Tensile&Compression | Tensile&Compression | Tensile&Compression | Tensile/Compression | |
| Accuracy | +/-0.3%F.S. | +/-0.1%F.S. | +/-0.3%F.S. | |||
| Resolution | 1/100 *2 | 1/200 *2 | 1/100 *2 | |||
| Func tions | Peak Hold | ✓ + | ✓ + | ✓ + | ✓ + | ✓ + |
| Zero Reset | ✓ + | ✓ + | ✓ + | ✓ + | ✓ + | |
| Accessory | Attachments | 6 types *3 | 8 types *3 | 8 types *3 | 6 types *3 | UKK: 5 types *3 UKT: 4 types *3 |
Alternative to IMADA Push Pull Force Gauge FB Seriess:
